| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HVF-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 Sets per month |
| Flames: | 50W/500W | Operating System: | PLC |
|---|---|---|---|
| Burner: | Diameter 9.5mm ± 0.5mm,length 100mm,Imported Products,conform To ASTM5025 | Flame Height: | 20mm～125mm±1mm Adjustable |
| Timing Device: | 9999X0.1s Can Be Preset | Standard: | UL 94 |
| High Light: | IEC60659 Flammability Testing Equipment,Horizontal Flammability Testing Equipment |
||
IEC60659 Horizontal Vertical Flame Test Apparatus Flammability Testing Equipment UL 94 With 500W Flame
Description of Flammability Testing Equipment:
The Horizontal & Vertical Flame Chamber is an essential flammability test equipment intended to determine the burning rating of plastic materials used for parts in devices and appliances under specified conditions. It can help users grasp the tendency of materials to extinguish or spread after being ignited, and the results can be used as a strong basis for evaluating the flame retardancy of materials.
Standard of Flammability Testing Equipment:
IEC 60695-11-3 ‘Fire hazard testing – Part 11-3: Test flames – 500 W flames – Apparatus and confirmational test Methods’;
IEC 60695-11-4 ‘Fire hazard testing – Part 11-4: Test flames – 50 W flames – Apparatus and confirmational test Methods’;
IEC 60695-11-10 ‘Fire hazard testing – Part 11-10: Test flames – 50 W horizontal and vertical flame test methods’;
IEC 60695-11-20 ‘Fire hazard testing – Part 11-20: Test flames – 500W flame test method’.
UL 94 Test for Flammability of Plastic Materials for Parts in Devices and Appliances
Bunsen burner of Horizontal & Vertical Flame Chamber:
The Bunsen burner of UL94 Horizontal Vertical Flame Test Apparatus from Hongce is available in 50 W or 500 W to fit different test items. The burner consists of a tube with a length of (100±10) mm and an inside diameter of (9.5±0.3) mm.
When the burner tube is in a vertical state, it can be manually tilted 20° or 45° to the direction of the fixture assembly and locked with the aid of a special limit device.
Parameters of Flammability Testing Equipment:
| ParametersModel | HVF-3(Touch screen) |
| Working voltage | 220V/50Hz |
| Power/grade | 50W and 500W double power switching |
| Control operation mode | PLC control, 7 inch color touch screen operation, with infrared remote control |
| Blast burner standard | IEC60695-11-3/IEC60695-11-4/10,UL94,inner diameter:Φ9.5±0.3mm,length:100mm,made of brass |
| Gas pressure | 0.1MPa |
| Gas flow |
50W:105±5ml/min or 18±1mm;500W:965±30ml/min or 117±3 mm, flow meter adjustment |
| Type | 50W&500W |
| Burning angle | 0°,20°,45°adjustable |
| Flame height | 20mm～125mm±1mm adjustable |

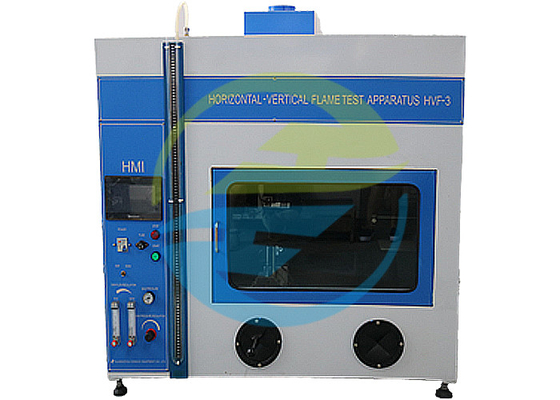

Product detail picture of Flammability Testing Equipment:
