| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9916 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 set per month |
| Test Plug: | Hardened Steel | Test Weight: | 1 Set, Superposition |
|---|---|---|---|
| Operating Method: | By Manual | Warranty: | 1 Year |
| Test Sample: | Sockets | Standard: | IEC60884-1, VDE0620 |
| Function: | Verification Of Withdrawal Force | Test Plug Roughness: | ≤0.8 Mm |

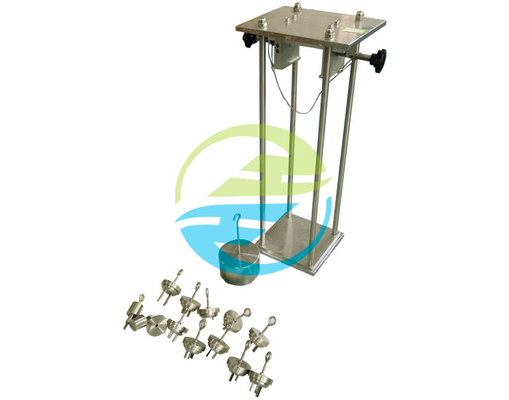

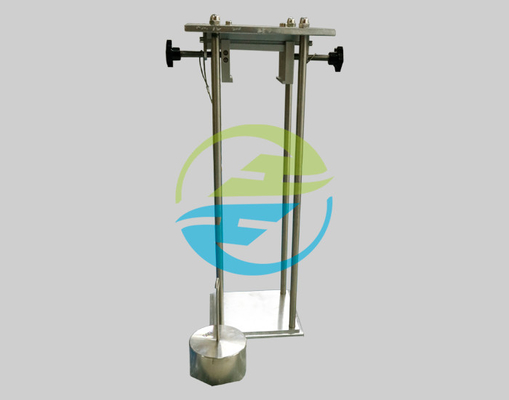

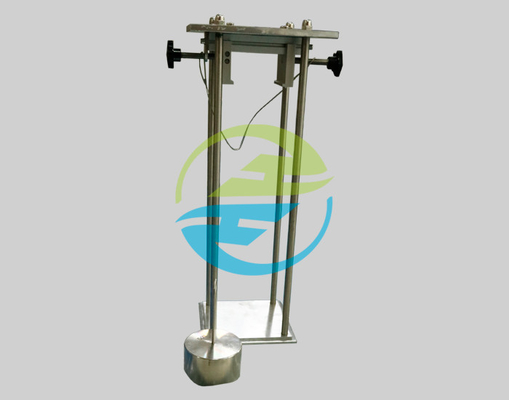

IEC60884 Hardened Steel Plug Socket Tester Manual Test Socket Pullout Force Test Device
Description of Plug Socket Tester:
22 Force necessary to withdraw the plug
The construction of accessories shall allow the easy insertion and withdrawal of the plug, and prevent the plug from working out of the socket-outlet in normal use.
For the purpose of this test, resilient earthing contacts, irrespective of the number, are considered as one pole, and non-resilient earthing contacts, irrespective of the number, are considered not to be a pole.
NOTE 1 A solid pin used for earthing is a non-resilient earthing contact.
Interlocked accessories are tested in the unlocked position.
Compliance is checked as follows.
For socket-outlets, by
– a test to ascertain that the maximum force necessary to withdraw the test plug from the socket-outlet is not higher than the force specified in Table 16, and
– a test to ascertain that the minimum force necessary to withdraw a single pin gauge from
the individual contact assembly is not lower than the force specified in Table 16. For plugs with resilient earthing contact assemblies, by
– a test to ascertain that the maximum force necessary to withdraw a single pin gauge from the individual resilient earthing contact assembly of the plug is not higher than the force specified in Table 16, and
– a test to ascertain that the minimum force necessary to withdraw a single pin gauge from the individual earthing contact assembly is not lower than the force specified in Table 16.
Standard of Plug Socket Tester:
IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 22.1, VDE0620
Application of Plug Socket Tester:
It is used to test whether the maximum force of pulling the plug from the socket and the minimum force of pulling the single plug pin from the plug bush is in the range of the standard required. The clamping system is easy to operate.
Test sample of Plug Socket Tester:
Household or similar purpose sockets.
Parameters of Plug Socket Tester:
| Test plug | Test plug: made of hardened steel with roughness not exceeding 0.8 mm. The test plug is made according to TIS166-2549 - figure A.6, TIS166-2549 - figure A.7, TIS166-2549 - figure A.9 and TIS166-2549 - figure A.10. |
| Weights | Equipped with a set of weights and a clamping system. One safety lanyard shall be provided to prevent the test plug from falling and damaging during use |
| Operation method | By manual |
Maximum and Minimum Withdrawal Force for Plugs Socket-Outlets:
| Rated value | Number of poles | Pulling force(N) | ||
| The maximum measure gauge of multipole plug pin | The minimum measure gauge of Single plug pin | The maximum measure gauge of single plug pin | ||
| ≤10A | 2 | 40 | 1.5 | 17 |
| 3 | 50 | |||
| ＞10A～16A | 2 | 50 | 2 | 18 |
| 3 | 54 | |||
| More than 3 | 70 | |||
| ＞16A～32A | 2 | 80 | 3 | 27 |
| 3 | 80 | |||
| More than 3 | 100 | |||
