| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HT-I02B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Carton box |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
| Product Name: | Large Baffle Test Finger B | Warranty: | 1 Year |
|---|---|---|---|
| Usage: | Verify The Basic Protection | Application: | Blender |
| Finger Length: | 100 | Baffle Thickness: | 80 |
| Baffle Diameter: | Ф125 | Standard: | IEC60335-2-14 |
| Highlight: | IEC 60335-2-14 Test Finger Probe,125mm Test Finger Probe |
||
IEC60335-2-14 Test Finger Probe B With 125mm Diameter Circular Stop Face
Standard description: For blenders, detachable parts, except lids, are not removed. The test is carried out with a test probe similar to that of test probe B of IEC 61032 but having a circular stop face with a diameter of 125 mm instead of the non-circular face, the distance between the tip of the test finger and the stop face being 100 mm.
Standard: IEC60335-2-14 clause 20.2.
Application: This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. Test Finger Probe
Test sample: Blender, easily accessible enclosure live parts or mechanical parts.
Feature: This test finger probe consists of dito, finger, base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°. Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). Test Finger Probe

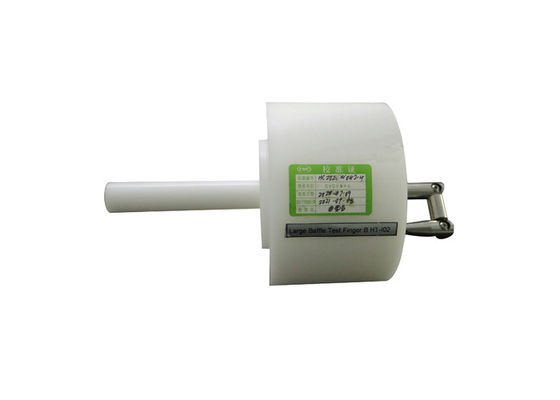

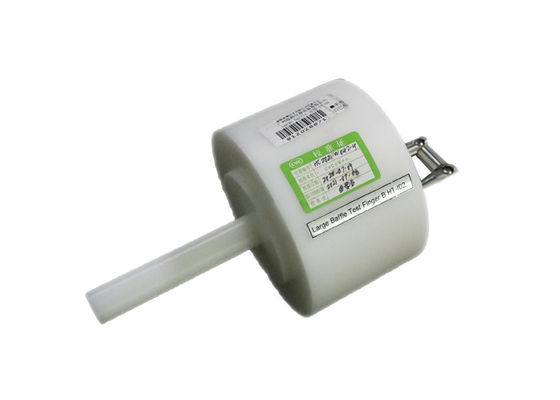

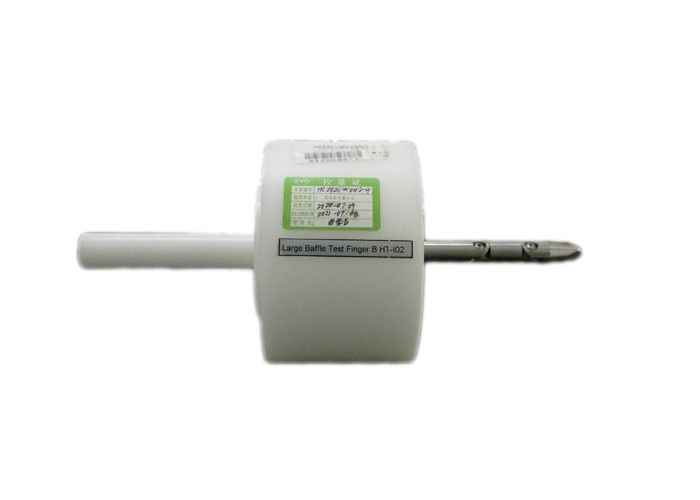

The probe having a baffle plate of 125mm in diameter and 80mm in thickness, which is made of nylon, in white. The finger length is 100 mm and made of stainless steel.
Parameters(mm):
| Model | HT-I02B |
| Name | Large Baffle Test Finger B |
| Joint 1 | 30 |
| Joint 2 | 60 |
| Finger length | 100 |
| Baffle diameter | Ф125 |
| Baffle thickness | 80 |
| Guard diameter | 75 |
