| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HT-I02A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Aluminum box |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
| Warranty: | 1 Year | Stop Face Diameter: | 50mm |
|---|---|---|---|
| Standard: | IEC60335-1 Clause 20.2 | Application: | Stability And Mechanical Hazards Test |
| Baffle Diameter: | Ф75±0.2 | Finger Length: | 80±0.2 |
| Test Finger Diameter: | 12 | Color: | White |
| Highlight: | Clause 20.2 Test Probe,IEC60335-1 Test Probe,Length 80mm Test Probe |
||

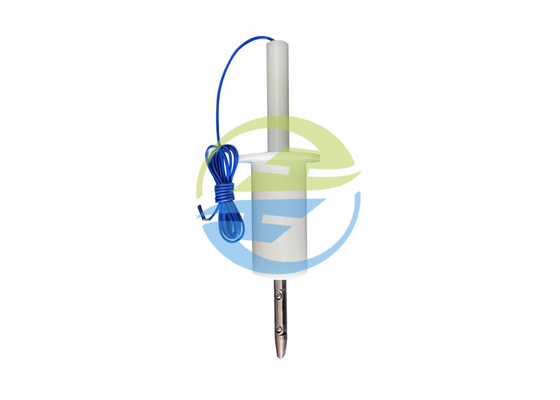

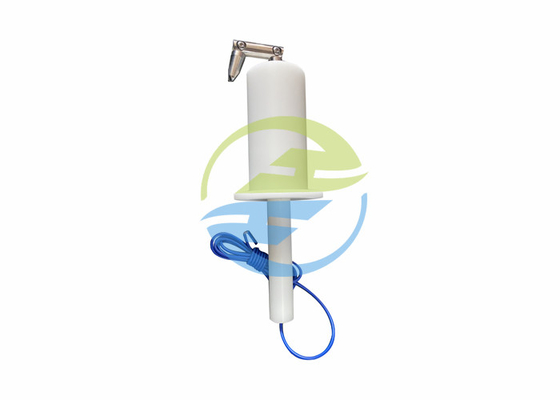

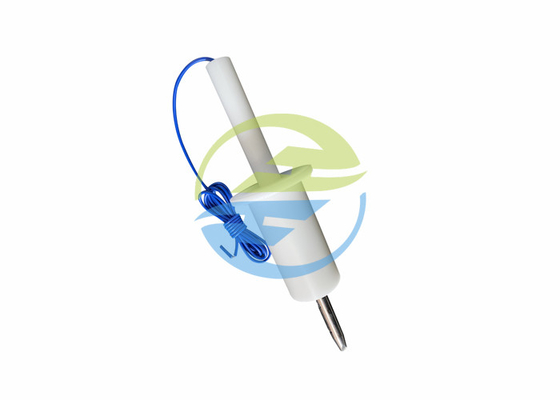

IEC60335-1 Clause 20.2 Test Probe With 50mm Circular Stop Face/ Finger Length 80mm
Compliance is checked by inspection, by the test of 21.1 and by applying a force not exceeding 5 N by means of a test probe that is similar to test probe B of IEC 61032 but having a circular stop face with a diameter of 50 mm, instead of the non-circular face.
For appliances provided with movable devices such as those intended for varying the tension of belts, the test with the test probe is carried out with these devices adjusted to the most unfavourable position within their range of adjustment. If necessary, belts are removed.
It shall not be possible to touch dangerous moving parts with this test probe. Test Finger Probe
Standard: IEC60335-1 Clause 20.2
Application: This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. Test Finger Probe
Test sample: Easily accessible enclosure live parts or mechanical parts.
Feature: This test finger probe consists of dito, finger, base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°. Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). Test Finger Probe
Parameters(mm):
| Model | HT-I02A |
| Name | Circular Baffle Test finger |
| Joint 1 | 30±0.2 |
| Joint 2 | 60±0.2 |
| Finger length | 80±0.2 |
| Fingertip to baffle | 180±0.2 |
| Cylindrical | R2±0.05 |
| Spherical | R4±0.05 |
| Fingertip cutting bevel angle | 37o 0 -10′ |
| Fingertip taper | 14 o 0 -10′ |
| Test finger diameter | Ф12 0 -0.05 |
| A-A Section diameter | Ф50 |
| A-A Section width | ---- |
| Baffle diameter | Ф75±0.2 |
| Baffle thickness | 5±0.5 |
| Force | ---- |
| Applied standard | IEC60335-1 |
