| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HDD8305 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 5 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
| Name: | Test Probe B | Warranty: | 1 Year |
|---|---|---|---|
| Application: | Checking The Accessibility | Test Sample: | Circular Saws |
| Standard: | IEC 60745-2-5 Figure 110 | Probe Length: | 50mm |
| Probe Diameter: | 12mm | Probe Material: | Stainless Steel |
| Highlight: | Figure 110 IEC Test Equipment,12mm Diameter IEC Test Equipment |
||
IEC 60745-2-5 Figure 110 IEC Test Equipment Test Probe B With 12mm Diameter
IEC60745-2-5 clause 19.101.2.4
For checking the accessibility of the cutting edge zone at the front of the saw above the guide plate, the rigid test probe ‘b’ of Figure 110 shall not contact the blade when the saw is set for a 90° cut and any depth of cut and the probe ‘b’ is centred with the blade then advanced in any single plane perpendicular to the blade and parallel to the guide plate, as specified in Figure 111. The test is repeated with probe ‘b’ offset 13 mm to the right of the blade centre and then offset 13 mm to the left of the blade centre.
Compliance is checked by inspection and measurements. IEC Test Equipment
Standard: IEC 60745-2-5 : Particular requirements for circular saws, clause 19.101.2.4 and Figure 110
Application: This probe is applicable to checking the accessibility of the cutting edge zone at the saw above the guide plate.
Test sample: Circular saws IEC Test Equipment
Parameter:
| Probe length | 50mm |
| Probe diameter | 12mm |
| Probe material | Stainless steel |
Standard figure:

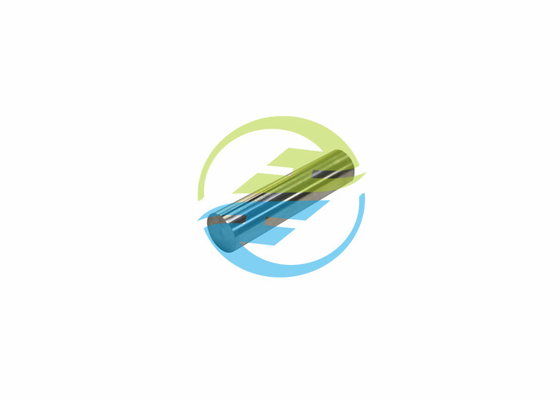

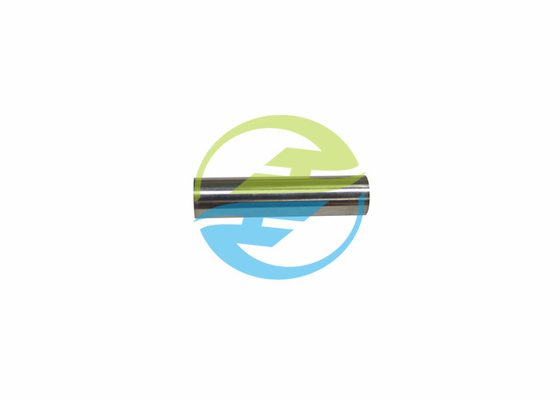

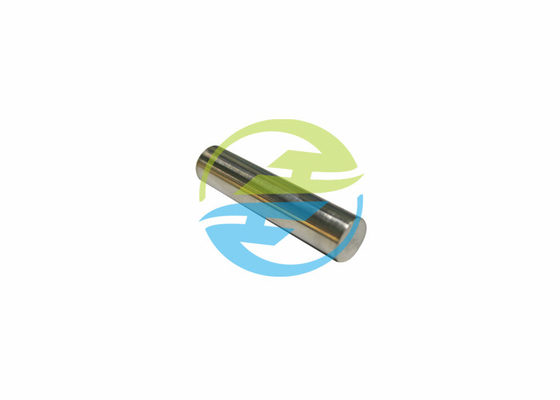

Picture for reference:
