| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HDX1301 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Cable Conductor | Standard: | IEC60245-1 |
|---|---|---|---|
| Usage: | Fixture | Test Sample: | 1mm² ~ 630mm² Conductor |
| Clamp Distance: | 100~1000mm | Material: | Aluminum Alloy Base Plate, Copper Clamp |
| Highlight: | Universal Conductor Resistance Cable Testing Equipment,Conductor Resistance Cable Testing Equipment,1000mm Conductor Resistance Cable Testing Equipment |
||

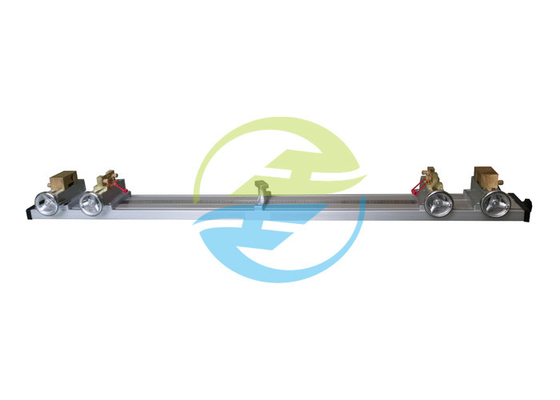

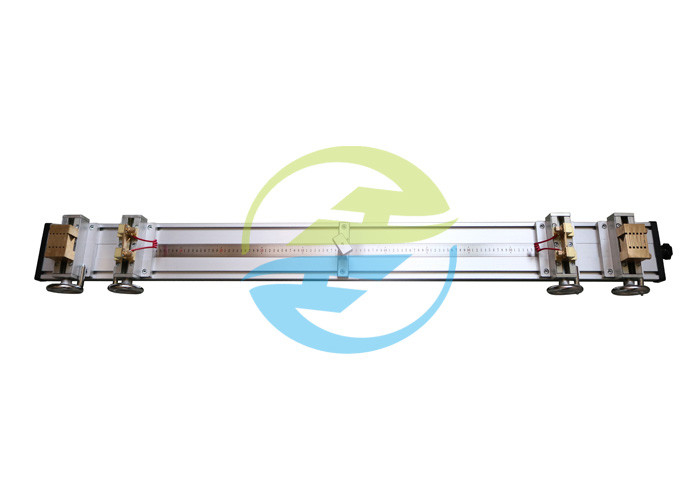

Universal 1000mm Conductor Resistance Cable Testing Equipment
The Universal 1000mm Conductor Resistance Cable Testing Equipment is a versatile and precise device designed for measuring the DC resistance of various power cables and electrical conductors. Below is a table outlining its key parameters:
| Parameter | Description |
| Test Object | Cable Conductor |
| Test Type | Resistance Measurement |
| Test Sample | 1mm² ~ 630mm² Conductor (Single or Multi-strand) |
| Reference Standard | IEC 60245-1, IEC 60245-2 |
| Usage | Fixture for Conductor Resistance Testing |
| Clamp Distance | Adjustable up to 1000mm |
| Material | Aluminum Alloy Base Plate, Copper Clamp |
| Dimensions | 1530 × 210 × 150mm |
| Adapting Electrical Bridge | QJ84 Double Bridge (Optional) |
Description:
The Universal 1000mm Conductor Resistance Cable Testing Equipment is specifically engineered to cater to the needs of measuring the DC resistance of a wide range of power cables and electrical equipment, as stipulated in the "Test methods for electrical properties of electric cables and wires." It adheres to the standards IEC 60245-1 and IEC 60245-2, which pertain to rubber-insulated cables rated up to 450/750 V. The equipment is capable of testing conductor materials with cross-sectional areas ranging from 1mm² to 630mm², accommodating both single and multi-strand conductors and cores of power cables.

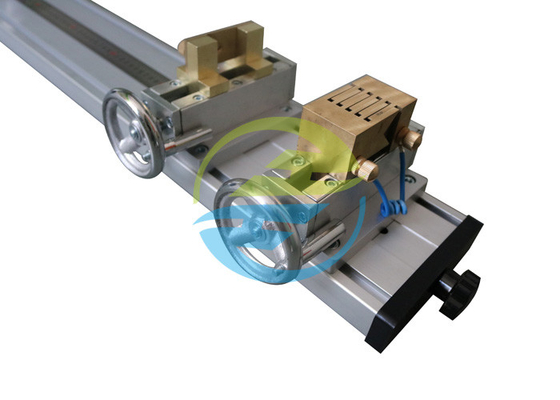

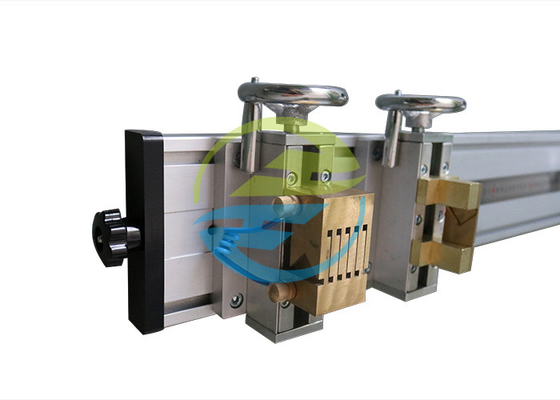

The equipment features a fast clamp and withdraw structure, utilizing positive and negative threaded rods for easy operation. The voltage and current clamps are separated to enhance the contact point of the sample, ensuring accurate and reliable test results. Constructed with an aluminum alloy base plate and copper clamp, the device offers durability and precision. Its dimensions of 1530 × 210 × 150mm make it suitable for various testing environments, while the optional QJ84 double bridge provides additional flexibility in testing configurations.
