| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HT-I23 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 3 Days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/ month |
| Name: | Test Probe | Model: | HT-I23 |
|---|---|---|---|
| Standards: | IEC60065, IEC62151, UL6500 | Warranty: | 1 Year |
| Lead Time: | Within Very Short Time | Probe Length: | 80mm |
| Baffle Plate Diameter: | 50mm | Material: | Nylon Handle + Stainless Steel Probe |

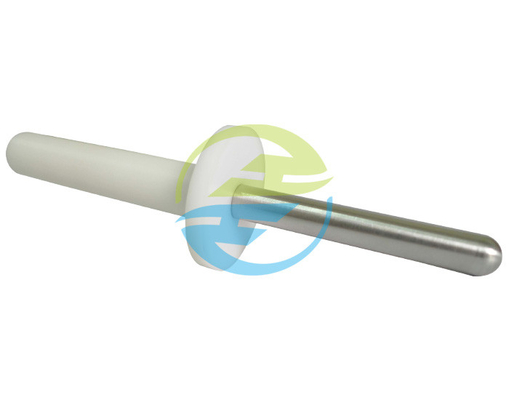

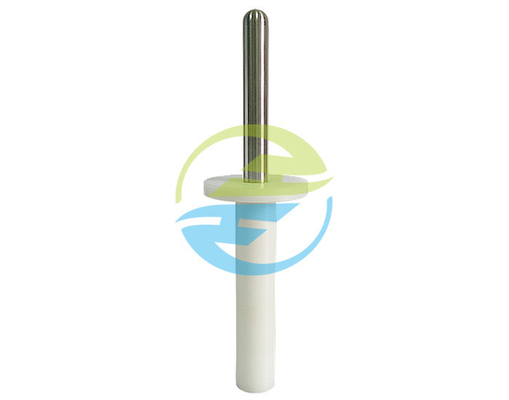

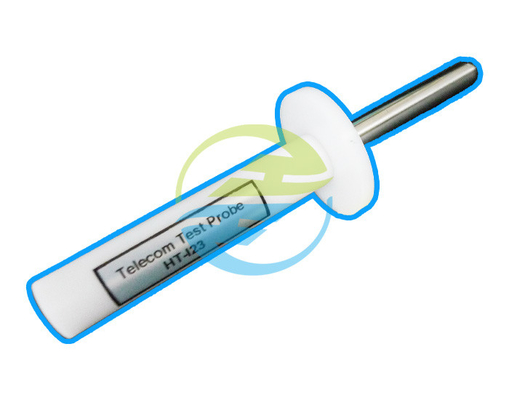

HT-I23 Telecom Test Probe IP Protection Level Testing Equipment IEC 60529 Certification Industrial Grade Safety Testing Solutions
Product Introduction:
HT-I23 telecommunications test probe is designed for safety protection in harsh environments. As a source manufacturer, we create each probe with ingenuity to protect the safety and reliability of your equipment. Whether it is dust and water resistance testing of electronic equipment or contact protection verification of industrial machinery, HT-I23 makes safety within reach with precise measurement and humanized design.
Operating Procedures of Test Finger Probe:
Take IEC 60950 clause 2.1.1.1 as an example:
This test probe is applied to openings, without appreciable force, in every possible position, except that floor-standing equipment having a mass exceeding 40 kg is not tilted.
Product features:
Humanized design: ergonomic grip, nylon material is light and durable, long-term operation without fatigue, in line with engineers' usage habits.
High-precision detection: simulate real contact scenes, equipped with dual-joint flexible probe, can be bent 90°, accurately detect equipment gaps and dangerous parts.
Multi-scenario adaptation: supports multi-level protection tests such as dustproof (IP5X) and waterproof (IPX7-9K), compatible with various scenarios such as electronic equipment, communication base stations, and automotive components.
Intelligent expansion: optional M6 threaded interface or banana plug, adaptable to third-party equipment such as push-pull force gauges and electric shock testers, flexible to meet customized needs.
Quality assurance: 304 stainless steel probe head, corrosion-resistant and wear-resistant, ensuring long-term stable performance.
Parameters:
| Model | HT-I23 |
| Probe length | 80 |
| End radius | R6 |
| Probe diameter | Φ12 |
| Baffle diameter of the handle | 50 |
Test objects and test items
Test objects:
Electronic equipment housing, charging port, key gap.
Protective cover, sealing strip, heat dissipation hole of industrial machinery.
Test items:
Dustproof performance (IP5X/IP6X)
Waterproof level (IPX1-IPX9K)
Hazardous parts contact protection (IEC 61032)
Open short circuit test (compatible with CP test requirements)
