| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HO6505 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 set per month |
| Bending Height Of The Flexing Cable: | 40±2 Mm, Adjustable | Pull Force Range: | 0-100N |
|---|---|---|---|
| Warranty Period: | 1 Year | Standard: | IEC 60320-1 Clause 23.3 Figure 19. |
| Maximum Rated Current Of Connector: | 16A | Maximum Pull: | 50N |
| Highlight: | Coupler Lateral Pull Test Apparatus,100N Coupler Lateral Pull Test Apparatus |
||
Coupler Lateral Pull Test Apparatus
Product Standard with Tensile Strength Testing Machine:
IEC 60320-1 clause 23.3 figure 19 specifies the requirements and procedures for testing the tensile strength of electrical connectors using a tensile strength testing machine. This standard ensures that the connectors meet the minimum standards of reliability and durability under specified tensile forces.
Application of Tensile Strength Testing Machine:
The tensile strength testing machine is suitable for conducting lateral pull tests on electrical connectors that have a current rating exceeding 0.2A. This type of testing is crucial to determine the connector's ability to withstand lateral forces that may occur during installation, use, or accidental impacts.
Test Sample:
The test sample consists of an electrical connector that has a current rating exceeding 0.2A. This connector is chosen for testing as it is representative of connectors that are typically subjected to higher levels of stress and strain in various applications. The test sample is prepared according to the specified procedures outlined in the IEC 60320-1 standard to ensure accurate and reliable test results.
Product Parameters with Tensile Strength Testing Machine:
| Bending height of the flexing cable | 40±2 mm, adjustable |
| Pull force range | 0-100N |
Value for the lateral pulls applied
| Rated current of connector(A) | Pull(N) |
| 2.5 | 6 |
| 6 | 35 |
| 10 | 35 |
| 16 | 50 |

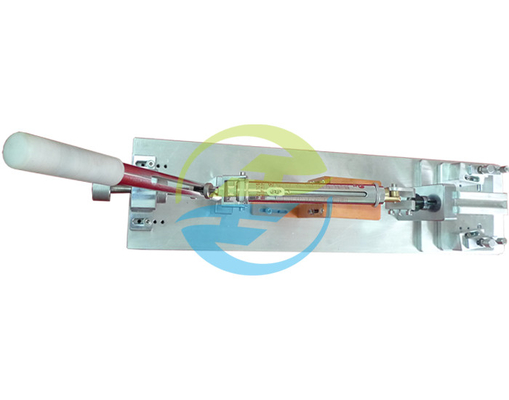

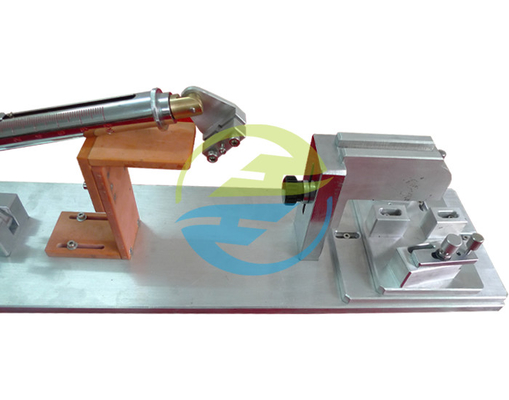

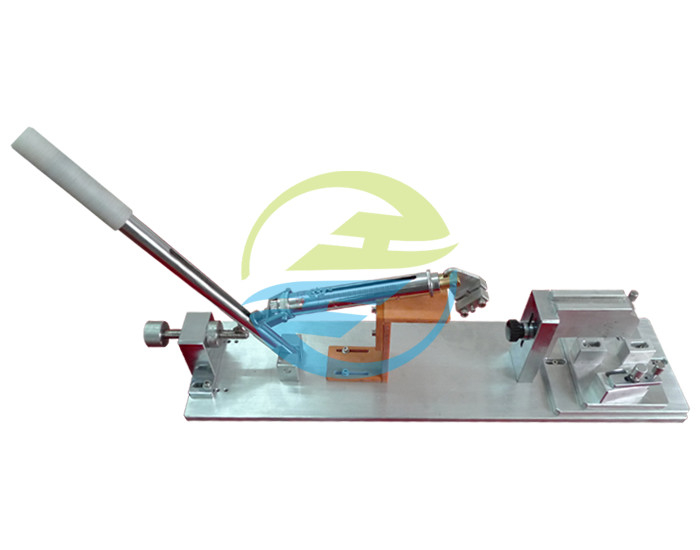

Product Image with Tensile Strength Testing Machine:
