| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9917 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set per month |
| Test Station: | 1 Station | Test Weight: | 10N*1, 60N*1, 20N*2 |
|---|---|---|---|
| Test Rate: | 60 Times /min | Working Stroke: | 35mm |
| Cord Bushes: | 5 Pieces | Test Times: | 0-9999, Preset |
| Name: | Apparatus For Testing Cord Retention | Warranty: | 1 Year |
| Highlight: | Soft Cable Tensile Strength Testing Machine,Tensile Strength Testing Machine |
||
Tensile Strength Testing Machine with Soft Cable Retention Force: High-Speed and Precise Testing Equipment at 60 Times/min for Evaluating Cable Integrity
Compliance with Standard: The testing machine adheres to IEC 60884 - 1 'Plugs and socket - outlets for household and similar purposes – Part 1: General requirements' clause 23.2 and figure 20. This standard guides the testing process to ensure accurate evaluation of the cable retention force.
Application Scope: It is used to test both rewireable and non - rewireable plugs and portable sockets. The purpose is to assess the effectiveness of the power cord fixtures in protecting conductors from stress (including twisting) and coverings from abrasion when connected to terminals.
Test Samples: The applicable test samples include non - rewireable plug and socket - outlet, as well as rewireable plug and socket - outlet, which are common electrical components in household and similar settings.
Automatic Testing: Once the test is initiated, the machine starts automatically and runs until it reaches the preset number of testing times. This automated process ensures consistent and reliable testing results.
Product Parameters with Tensile Strength Testing Machine:
| Power Supply | AC 220V 50Hz |
| Weight Configurations | 10N*1, 60N*1, 20N*2 |
| Testing Rate | 60 times/min |
| Test Times | 0-9999 times, preset. Default 100 times. |
| Cord Bushings | 5 pieces (Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ16mm) |
| Working Stroke | 35mm |
The pull force to the flexible cable:
| Rated Current of the Flexible Cable (A) | Rated Voltage of the Flexible Cable (V) | Tensile Force (N) |
| 2.5 | - | 50 |
| 2.5~16 | <250 | 60 |
| 2.5~16 | >250 | 80 |
| >16 | - | 100 |

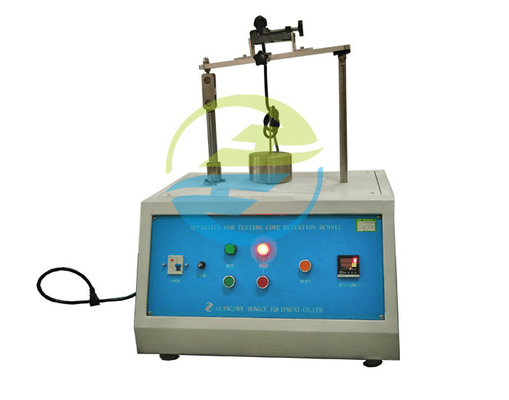

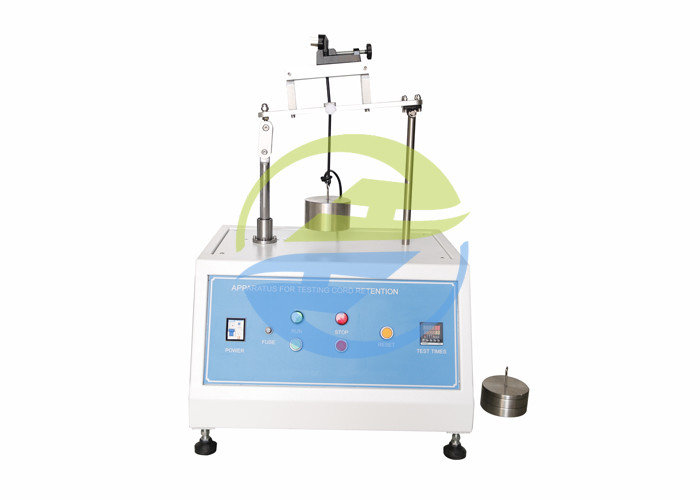

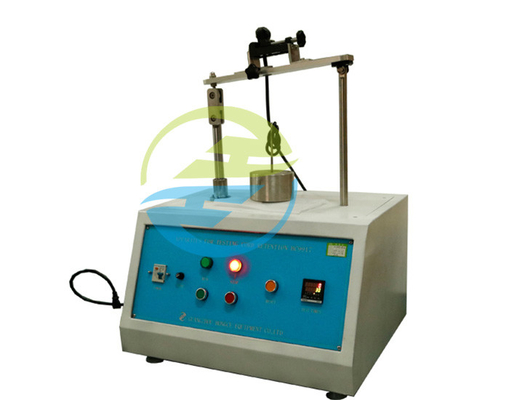

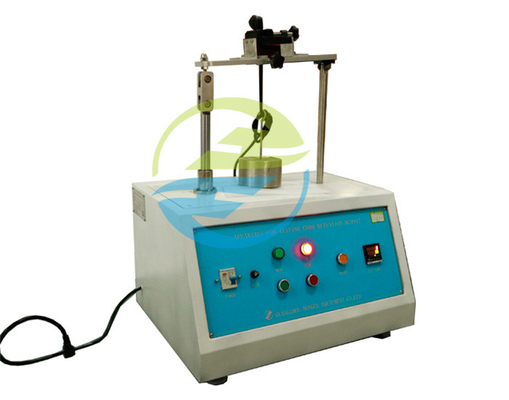

Product Image with Tensile Strength Testing Machine:
Custom Design: The company has an in - house development and design team that can create unique product designs based on customer ideas. This allows for tailored solutions to meet specific testing requirements.
Skilled Workforce: All employees are experienced and skilled, providing reliable technical support. Their expertise ensures proper operation, maintenance, and troubleshooting of the testing machine.
Global After - sales: The working and sales teams ensure fast and efficient after - sales service for products sold worldwide. This includes assistance with installation, training, and handling any issues that may arise during the product's lifespan.
Company Profile: Guangzhou Hongce Equipment Co., Ltd, established in 2003 in Guangdong, China, is a leading company in the inspection equipment industry.
Production Capabilities: The company has introduced advanced equipment and combines the most advanced technological production processes. It has a strict quality control system in place to manage the entire production process.
Resources and Management: It has assembled a group of high - tech management talents and advanced equipment. The company adopts modern management, computer design, and control methods.
Business Model and Product Range: The company integrates R&D, design, production, and sales. It specializes in producing various testing equipment, including wire plug and socket testing equipment, electronic mechanical reinforcement testing equipment, electronic fire hazard detection equipment, and other non - standard detection equipment. The products are sold well both domestically and internationally, and the company has established supply relationships with many well - known companies.
