| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HCVC01 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 50 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per month |
| Test Times: | 0~9999(selectable),25 Times Is By Default | Drive Mode: | Stepper Motor Drive |
|---|---|---|---|
| Tensile Test: | Simulates Pulling Force That The Home Appliance May Be Subjected To During Use | Pull Test Time: | 25 Times |
| Torque Weights: | 5N*12.5N*17.5N*1(the Torque Force 0.1Nm,0.25Nm,0.35Nm Can Be Achieved) | Clamp: | Combined Clamp For Both Pull Force And Torque, Matching By The Bearing, Can Reduce The Friction When Processing Torque Test |
| International Standards: | IEC 60335-1:2020, IEC 60884-1:2022, IEC 60598-1:2020 | Torque Test Time: | 1 Min |
| Highlight: | One Station Electrical Appliance Testing,Results Electrical Appliance Testing |
||
The Torque Load feature of this product is one of its most important aspects, as it allows you to test the strength of the power cord and other electrical components under different levels of torque load. With a torque load of 5N, 12.5N, 17.5N, and one of each, you can test for the torque force of 0.1Nm, 0.25Nm, and 0.35Nm. This feature ensures that you can accurately test the strength of the power cords of your household appliances, and ensure that they are safe and reliable for use.
Another important feature of this product is its Torque Test Time, which is set at 1 minute. This feature allows you to test the strength and durability of the power cords and other electrical components over an extended period of time, ensuring that they are capable of withstanding long-term use.

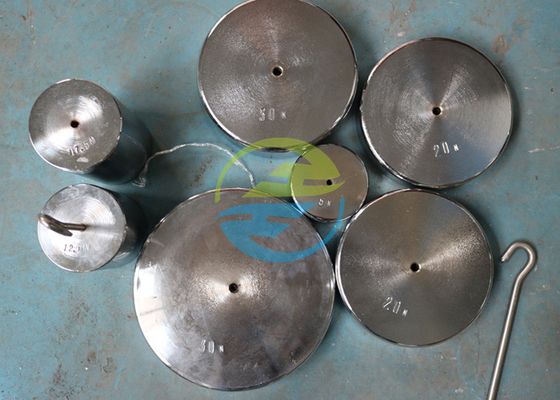

The Pull force weights feature of this product is another important aspect, as it allows you to test the strength and durability of the power cords and other electrical components under different levels of pull force. With pull force weights of 10N*2, 20N*2, and 30N*2, you can achieve pulling forces of 30N, 60N, 80N, and 100N, ensuring that you can accurately test the strength of the power cords and other electrical components under different levels of stress and tension.
The Torque weights feature of this product is also an important aspect, as it allows you to test the strength and durability of the power cords and other electrical components under different levels of torque force. With torque weights of 5N*12.5N*17.5N*1, you can achieve torque forces of 0.1Nm, 0.25Nm, and 0.35Nm, ensuring that you can accurately test the strength of the power cords and other electrical components under different levels of stress and tension.
In conclusion, the Ensure Safety and Reliability Home Appliance Testing Equipment for Power Cord Evaluation is a highly advanced and precise Household Device Quality Control Tester designed to ensure that your household appliances are safe and reliable for use. With its range of advanced features and precise testing capabilities, this product is an ideal tool for anyone who wants to ensure that their household appliances are of the highest quality and reliability.
Home Electric Equipment Testing Apparatus for testing the safety and durability of home electrical appliances such as refrigerators, washing machines, and vacuum cleaners. The equipment is designed to test various home appliances with power cords, medical devices, lamps and other products. It can test the pull force load of 10N, 20N, and 30N, two of each, with a pull force frequency of 1 times/s and a pull test time of 25 times. The torque test time is 1 minute, providing a comprehensive testing solution for home electrical appliances.
| Product Attribute | Value |
|---|---|
| Pull Force Weights | 10N*2,20N*2,30N*2 |
| Pull Force Frequency | 1 times/s |
| Torque Arm | 20mm |
| Torque Time | 0.01S～99 hours 99 min |
| Torque Test Time | 1 Min |
| Application Scope | Various home appliances with power cords, medical devices, lamps and other products |
| Clamp | Combined clamp for both pull force and torque, matching by the bearing, can reduce the friction when processing torque test |
| Torque Weights | 5N*12.5N*17.5N*1 (the torque force 0.1Nm,0.25Nm,0.35Nm can be achieved) |
| Drive Mode | Stepper Motor Drive |
| International Standards | IEC 60335-1:2020, IEC 60884-1:2022, IEC 60598-1:2020 |
This Residential Appliance Functionality Tester is a Domestic Appliance Safety Testing Tool that can be used for electrical appliance check.
The HongCe HCVC01 Home Appliance Testing Equipment is an essential tool for conducting accurate and reliable testing of personal and home electrical equipment. This product is designed for use in the electrical appliance check process and can be utilized in a variety of testing scenarios.
Whether you are a manufacturer seeking to ensure your products meet industry standards or a regulatory body conducting inspections, the HCVC01 offers the perfect solution. With its combined clamp for both pull force and torque, matched with a bearing to reduce friction, the HCVC01 is capable of processing torque tests with unparalleled accuracy.
The HCVC01 features a single test station and is capable of conducting 0~9999 test times, with 25 times being the default setting. It is equipped with a stepper motor drive and has a torque time range of 0.01S～99 hours 99 min. The product also comes with an optional calibration certificate at an additional cost to ensure maximum precision and accuracy.
The HCVC01 is manufactured in China and has a minimum order quantity of one set. With a supply ability of 10 sets per month, the product has a delivery time of 50 days and is packaged in sturdy plywood for safe transportation. The price is negotiable, and payment terms include T/T.
The HCVC01 is ideal for a wide range of product application occasions and scenarios, including personal appliance inspection systems and home electrical equipment testing. Its versatility makes it an indispensable tool for any manufacturer or regulatory body seeking to guarantee the quality and safety of their products.
Our Home Appliance Testing Equipment product comes with comprehensive technical support and services to ensure seamless integration and operation. Our team of experts is available to provide installation assistance, training, and ongoing maintenance support to ensure optimal performance and minimal downtime. Additionally, we offer calibration and repair services to keep your equipment running smoothly and accurately. Our commitment to customer satisfaction means that we strive to exceed your expectations in every aspect of our product and service offerings.
Product Packaging:
- The Home Appliance Testing Equipment will be securely packed in a sturdy cardboard box to ensure safe shipping.
- The box will be labeled with the product name, model number, and handling instructions.
Shipping:
- We offer free standard shipping to all locations within the United States.
- Orders will be processed within 1-2 business days and shipped via UPS or FedEx.
- Estimated delivery time is 3-5 business days.
- Expedited shipping options are available at an additional cost.
Q: What is the brand name of this Home Appliance Testing Equipment?
A: The brand name of this Home Appliance Testing Equipment is HongCe.
Q: What is the model number of this Home Appliance Testing Equipment?
A: The model number of this Home Appliance Testing Equipment is HCVC01.
Q: Does the equipment come with a calibration certificate?
A: No, the calibration certificate is not included. However, it can be provided at an additional cost.
Q: What is the minimum order quantity for this equipment?
A: The minimum order quantity for this equipment is 1 set.
Q: What is the delivery time for this equipment?
A: The delivery time for this equipment is 50 days.
Q: What are the payment terms for this equipment?
A: The payment terms for this equipment are negotiable and can be made through T/T.
