| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HH0804 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Enclosures | Standard: | IEC 60529, EN 60529 |
|---|---|---|---|
| Test: | Protection Against Water | The Nozzle Diameter: | Ф6.3mm; Ф12.5mm |
| Distance To Enclosure: | 2.5~3m | Testing Time: | Not Less Than 3min |
| Water Flow: | 12.5L/min; 100L/min | Pressure Gauge: | 0~0.25MPa |
| Highlight: | IPX6 Ingress Protection Test Equipment,IPX5 Ingress Protection Test Equipment,Hand Operated Ingress Protection Test Equipment |
||

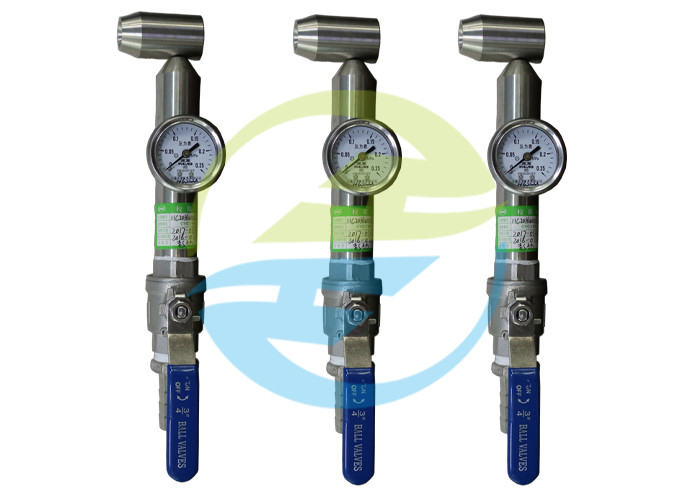

Handheld Jet Nozzle Tester HH0804
Test sample: The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).
Feature:
With pressure gauge, it can be used by replacing the nozzle, it also can match the complete set of waterproof system.
Technical parameters:
| Model | HH0804-1 | HH0804-2 |
| Item | IPX5 Jet nozzle | IPX6 Jet nozzle |
| The nozzle diameter | Ф6.3mm | Ф12.5mm |
| Water flow | 12.5±0.625L/min, Flow meter is adjustable | 100±5 L/min, Flow meter is adjustable |
| Water supply |
Water flow rate ＞12.5L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
Water flow rate ＞100L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
| The distance from jet nozzle to enclosure | 2.5~3m | |
| Testing time | 1min/m²(not less than 3 min) | |
| Pressure gauge | 0~0.25MPa | |
| Site requirements |
Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation |
|
