| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HH0802 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Enclosures | Standard: | IEC 60529, EN 60529 |
|---|---|---|---|
| Test: | Protection Against Water | Oscillating Tube Arc: | R400 |
| Needle Hole: | Φ0.4mm | Swing Angle: | IPX3: 120°; IPX4: 180° |
| Water Flow: | 10L/min | Control: | PLC Intelligent Control |
| Highlight: | environmental test chamber,waterproof tester |
||

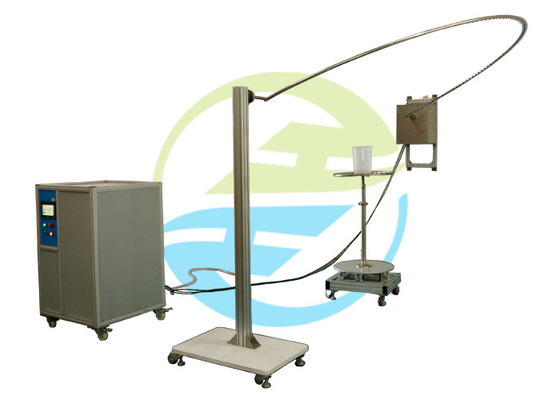

The HH0802 oscillating tube tester, which is used to test the IPX3 and IPX4 water protection levels of electronic appliances and other products. It includes product description, applicable standards, test samples, features, and technical parameters.
This tester is used to detect the IPX3 and IPX4 water resistance of electronic appliances, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and other electrical products.
Waterproof electronic appliances, lamps, electrical cabinets, electrical components, automotive parts (such as automotive instruments, various switches, micro motors, etc.).
There are two models: open type and chamber type. It uses PLC control, with a motor driving the oscillating tube for reciprocating motion, and simultaneously controls the water flow and the turntable speed to ensure uniform testing of all sides of the sample.
| Parameters | Details |
| Power Supply | Single-phase AC220V 50Hz or customizable |
| Water Supply | Clean water with a flow rate of >10L/min ± 5%, equipped with a clean water filtration unit |
| Control and Operation | PLC intelligent control, 7-inch color touch screen operation |
| Oscillating Tube Size | Optional sizes of R400, R200, R600, R800, R1000, R1200, R1400, R1600mm, made of stainless steel |
| Needle Hole | Φ0.4mm |
| Included Angle of Two Holes | 120° for IPX3 and 180° for IPX4 |
| Swing Angle | 120° (±60°) for IPX3 and 350° (±175°) for IPX4 |
| Swing Speed | 4s/time (2×120°) for IPX3 and 12s/time (2×350°) for IPX4 |
| Water Flow | Adjustable from 1 - 10L/min |
| Testing Time | Presettable from 0.01S to 99 hours 59 minutes |
| Rotary Plate | Diameter of Φ600mm, rotation speed of 1r/min, can be paused in four directions, with a load-bearing capacity of ≤50kg for placing electrical equipment |
| Pressure Gauge | 0 - 0.25MPa |
| Site Requirements | A dedicated IP waterproof test room with a flat and illuminated floor, equipped with a 10A waterproof leakage switch (or socket), good inflow and drainage functions, and requires ground installation |
| Covered Area | Set according to the selected oscillating tube |
