| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9928 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 set per month |
| MATERIAL: | Stainless Steel | STATION: | 1 Station |
|---|---|---|---|
| CLAMP UNIT: | Plug Pin Clamp Unit | STANDARD: | IEC60884.1, VDE0620 |
| WEIGHTS: | 4N, 20N, 30N, 50N | GAUGES: | Customizable |
| Highlight: | Adjustable Weights Plug Firmness Tester,Plug Firmness Tester,Stainless Steel Plug Firmness Tester |
||
Compliance with Standard: The tester complies with IEC 60884 - 1 'Plugs and socket - outlets for household and similar purposes – Part 1: General requirements' clause 24.10, Figure 30. It details the setup where the plug is placed on a rigid steel plate with holes sized and spaced according to specific criteria related to the plug's pin dimensions.
Testing Environment and Procedure: The test is conducted within a heating cabinet at (70 ± 2) °C, 1 hour after the plug is placed. A pull force equal to the maximum withdrawal force (as per table 16) is applied for 1 minute on each pin in turn, in the pin's longitudinal axis direction. After testing, the plug is cooled to ambient temperature and checked for pin displacement within the plug body (not more than 1 mm).
Test Sample and Application: The test sample is the plug and its pins. It is used to evaluate the firmness of the plug and its pins by simulating the forces they might experience in real - world use.
Parameters with Plug Socket Tester:
| Test station | 1 station |
| Test weight | 50N*1, 20N*2, 30N*1, 4N*1 |
| Gauges | provide 6A plug gauge, 10A plug gauge, 16 plug gauge, one each |
| Socket | The socket plate should be made according to specific country's plug and socket requirements. |
Familiarization: Users should understand relevant standards before using the tester to ensure proper and effective testing.
Setup: Position the plug on the steel plate with pin centers aligned to hole centers, insert the test plug into the socket, and place the assembly in the heated cabinet.
Fixture Selection: Choose a clamping fixture based on the plug shape and ensure a firm connection to prevent loosening during the pull test.
Force Application: Select the appropriate pull force weight according to the standard's requirements (achieved through superposition if needed), attach it carefully to the clamp, and apply the force without creating explosive tension.
Result Verification: After the 1 - minute force application on each pin, cool the plug and check for pin displacement.
Post - test Maintenance: Clean the device and maintain the sockets after testing.

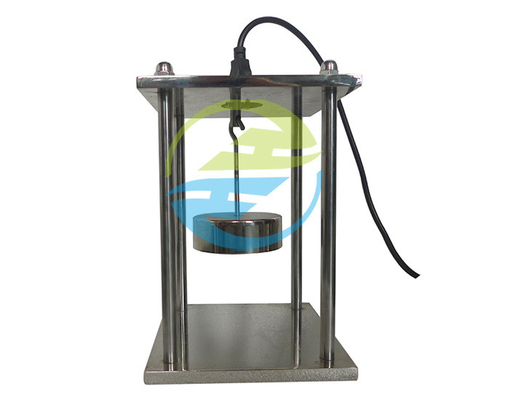

Picture View with Plug Socket Tester:
Advantage Service
Custom Design: The company has an in - house development and design team that can create unique product designs based on customer ideas.
Skilled Workforce: All employees are experienced and skilled, providing reliable technical support.
Global After - sales: The work and sales teams ensure fast and efficient after - sales service for products sold worldwide.
Company Profile: Guangzhou Hongce Equipment Co., Ltd, established in 2003 in Guangdong, China, is a leading inspection equipment company.
Production Capabilities: It has introduced advanced equipment, follows a strict quality control system, and employs high - tech management talents. The company uses modern management and computer design and control, with products reaching international advanced levels.
Product Range: Specializes in producing various testing equipment, including plug and socket wire testing equipment, electronic product mechanical strength testing equipment, and more. The products are sold well domestically and internationally, with supply relationships with many well - known companies.
Contact Person: Ms. Tessa Huang
Tel: +86 18933919125
Fax: 86-020-31143909-805
