| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9902 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 set per month |
| Name: | Compression Testing Machine | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Stainless Steel | Test Station: | 1 Station |
| Test Weight: | 300N | Operating Method: | By Manual |
| Test Sample: | Plugs | Application: | Compression Test |
| Highlight: | Electrical Plug Socket Tester,HC9902 Plug Socket Tester,Stainless Steel Plug Socket Tester |
||

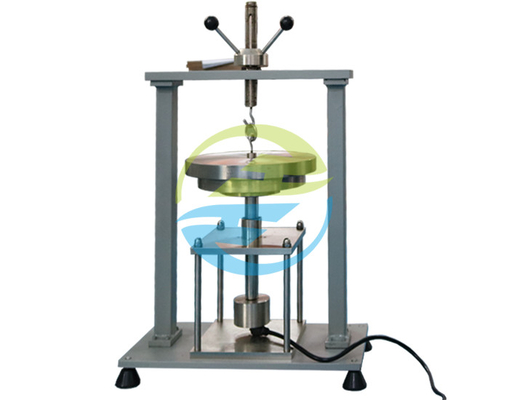

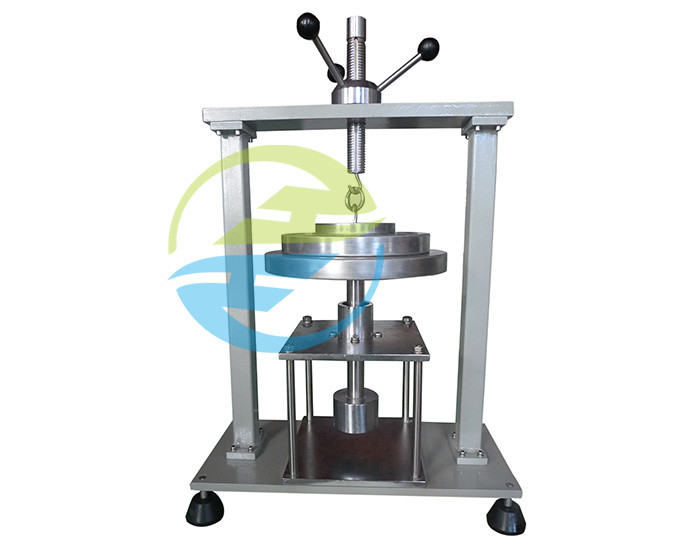

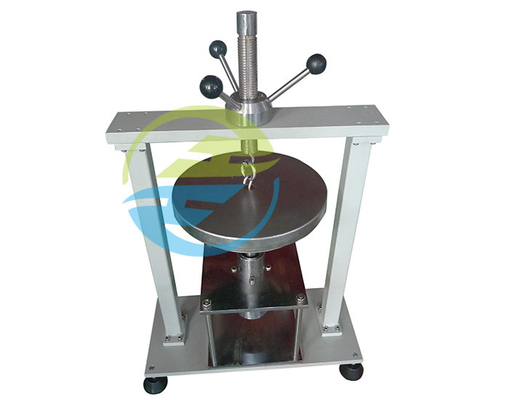

Stainless Steel Plug Socket Tester with Compression Test Device, Insulation Resistance & Continuity Checker, HC9902 - Comprehensive Electrical Safety Testing Equipment
Compliance with Standards: The tester complies with GB2099 - 1 - 2008 Clauses 10.1 and 24.5 and Figure 8, as well as IEC60884 - 1 Figure 8. These standards define the requirements for testing the mechanical strength of plugs through pressure testing.
Purpose and Sample Range: It is designed for pressure testing of plugs to determine if their mechanical strength meets the standard. The sample range is limited to plugs.

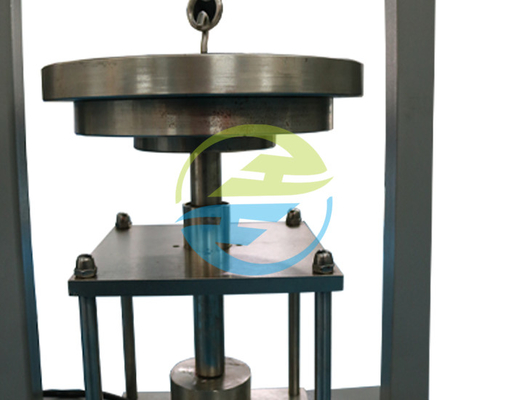

Structure and Function: The tester uses weights to apply force, with 150N and 300N being the superimposed forces. During the test, the temperature must be maintained at 23 ± 2°C. A pressure of 300N is applied to the sample at two positions (a and b as per the standard figure) for 1 minute each.
Parameters With Plug Socket Tester:
| Name | Compression Testing Machine |
| Warranty | 1 Year |
| Material | Stainless Steel |
| Test Station | 1 Station |
| Test Weight | 300N |
| Operating Method | By manual |
| Test Sample | Plugs |
| Application | Compression Test |
Product Details With Plug Socket Tester:
Custom Design: The company has an in - house development and design team that can create unique product designs based on customer ideas. This allows for personalized solutions to meet specific testing needs.
Skilled Workforce: All employees are experienced and skilled, providing reliable technical support. Their expertise ensures proper operation, maintenance, and troubleshooting of the tester.
Global After - sales: The working and sales teams ensure fast and efficient after - sales service for products sold worldwide. This includes assistance with installation, training, and handling any issues that may arise during the product's lifespan.
Company Profile: Guangzhou Hongce Equipment Co., Ltd, established in 2003 in Guangdong, China, is a leading company in the inspection equipment industry.
Production Capabilities: The company has introduced advanced equipment and combines the most advanced technological production processes. It has a strict quality control system in place to manage the entire production process.
Resources and Management: It has assembled a group of high - tech management talents and advanced equipment. The company adopts modern management, computer design, and control methods.
Business Model and Product Range: The company integrates R&D, design, production, and sales. It specializes in producing various testing equipment, including wire plug and socket testing equipment, electronic mechanical reinforcement testing equipment, electronic fire hazard detection equipment, and other non - standard detection equipment. The products are sold well both domestically and internationally, and the company has established supply relationships with many well - known companies.
