| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Product factory certificate |
| Model Number: | HC174 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 1 Sets per 2 month |
| Detection Workpiece: | Relay | Number Of Station: | 2 |
|---|---|---|---|
| Ultimate Vacuum Degree: | ≤0.4Mpa | Color: | Gray-blue |
| Size: | 1200mm*1000mm*1700mm | Weight: | 1000kg |
| Screen: | Touch Screen | Protective Device: | Safety Grating |
| Highlight: | High Vacuum Exhaust Table Tester,High Voltage DC Relay Tester |
||

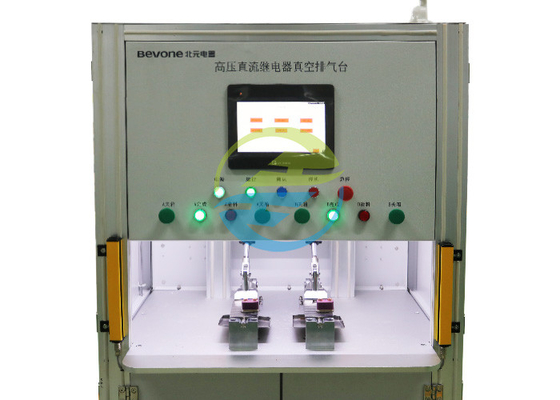

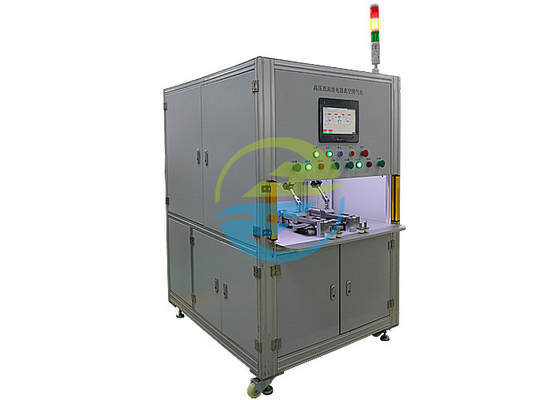

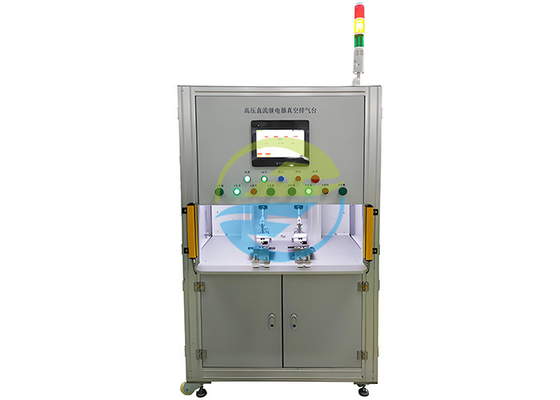

High Vacuum Exhaust Table Testing Equipment for High Voltage DC Relay with 2 Station Exhaust Nozzles: Advanced and Efficient Testing Solution with Precise Vacuum Control and Dual-Station Functionality
Application: This equipment is designed for high voltage DC relay series product components, specifically for vacuuming, leak detection, gas filling, and sealing operations.
Components and Operation: It consists of a workpiece sealing system, vacuum system, inflation system, cutting system, and electrical system. The equipment uses a molecular pump for vacuuming and has 5 station exhaust nozzles, allowing for single or multiple station combinations. It enables a series of automated operations from relay placement to final sealing and leak detection.
High Degree of Automation: With a semi - automatic design, it coordinates system software and hardware to provide safety protection, interlocking protection, and fault alarm functions, ensuring convenient operation and maintenance.
High Production Efficiency: Usually set up in a multi - station format, each station can operate simultaneously or independently, enhancing production flexibility and efficiency.
Advanced Technical Indicators: Utilizes a molecular pump for exhaust, has 5 station exhaust nozzles with flexible station operation options, and features an automated operation process covering all key steps.
High Safety: Focuses on both product quality and production efficiency, with reliable interlocking and protection functions to ensure the safety of the operation process.
Technical parameters:
| Detection workpiece | relay |
| Number of stations | 2 |
| Ultimate vacuum degree | ≤0.4Mpa |
| Color | gray-blue |
| Accessories | waste collection box |
| Control system | PLC |
Product details:
Company Profile: Guangzhou Hongce Equipment Co., Ltd, established in 2003 in Guangdong, China, is a leading company in the inspection equipment industry.
Production Capabilities: The company has introduced advanced equipment, combines advanced technological production processes, and has a strict quality control system for the entire production process.
Resources and Management: It has assembled high - tech management talents and advanced equipment, adopting modern management, computer design, and control methods.
Business Model and Product Range: The company integrates R&D, design, production, and sales, specializing in various testing equipment such as wire plug and socket testing equipment, electronic mechanical reinforcement testing equipment, and non - standard detection equipment. Its products are sold well both domestically and internationally, and it has established supply relationships with many well - known companies.
