| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | CT-2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Power Supply: | AC 230 50HZ | Electrode Output The Testing Voltage: | AC 40-50V |
|---|---|---|---|
| Temperature Environment: | 0-40°C | Relative Humidity: | ≤80% |
| Highlight: | electric socket tester,socket tester |
||
IEC60335 Plug Socket Tester Anti Shock Probe Experimen Device 0-40°C Electrode Output The Testing Voltage AC40-50V
Standard
This device is designed and manufactured according to the standard of IEC60335, IEC 60529.
Application
It is used with the testing probe for the convenience and correctness.
In the two output electrodes, the low potential (the red one) is connected with the energized part of the electrical appliance and the high potential is connected with the input terminal of the probe used. At this time, conduct the circuit and push the button of start. Then use the probe to touch the parts that maybe electrified. If the alarm of the equipment sounds, it is proved that the testing part is electrified. Then push the button of reset and cut down the circuit.
Technical Parameters
1. Power supply: AC 230 50HZ
2. Electrode output the testing voltage: AC40-50V
3. It is suitable to use this equipment in such environment:
Temperature: 0-40°C
4.Relative humidity: ≤80%
No shaking and no corrosive gas

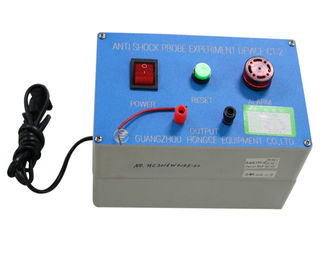

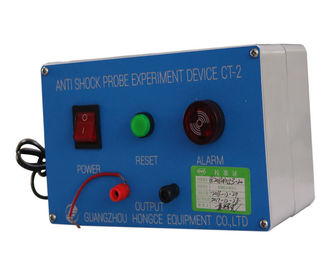

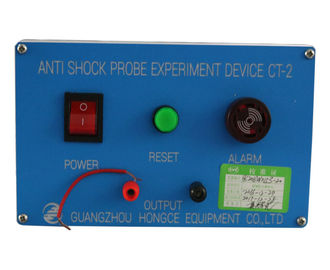

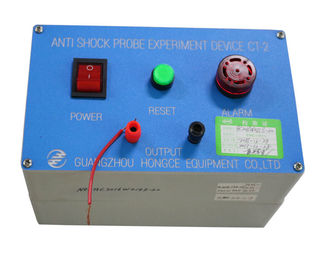

Picture for reference
