| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | calibration certificate (cost additional) |
| Model Number: | HH0802 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set /month |
| Standard: | IEC60529, IEC 60335-1 And Etc | Warranty: | 1 Year |
|---|---|---|---|
| Control: | PLC Intelligent Control | Needle Hole: | Φ0.4mm |
| Turntable Diameter: | 600mm | Included Angle Of Two Holes: | IPX3: 120°; IPX4: 180° |
| Tube Radius: | 200~1600mm | Water Flow: | 1-10L/min Adjustable |
| Highlight: | 1600mm Oscillating Tube Tester,IPX4 Oscillating Tube Tester |
||
IPX3 IPX4 Oscillating Tube Tester HH0802 Ingress Protection with IP Testing Equipment
Standard with IP Testing Equipment:
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX3 and IPX4, IEC 60884-1, IEC 60335-1, IEC 60598-1.
Application with IP Testing Equipment:
It is used for the testing of IPX3 and IPX4.
Test sample with IP Testing Equipment:
This IP testing equipment is designed for apparatus with waterproof capabilities, encompassing electronic devices, lamps, electrical enclosures, electrical components, vehicles (including cars and motorcycles), and various electrical products such as automotive instruments, all types of switches, micro-motors, and so forth.
Feature with IP Testing Equipment:

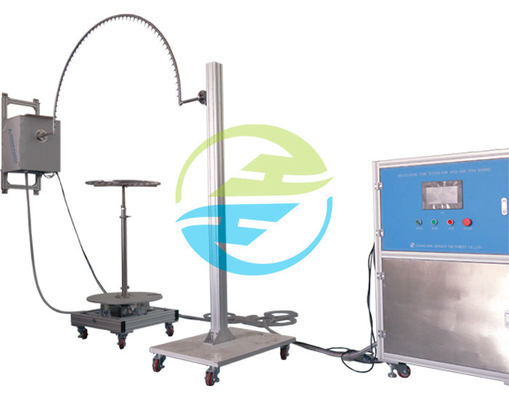

There are two models: Open type and chamber type. Using PLC control, motor drive oscillating tube to do the reciprocating motion at a certain angle, at the same time control the water flow, the turntable rotates at a certain speed, so that to make every side of the sample testing uniformly.
Parameters with IP Testing Equipment:
| Item | Parameters |
| Input power | Single-phase AC220V,50Hz |
| Water supply |
Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| The size of the oscillating tube | R200 ,R400,R600,R800,R1000,R1200,R1400,R1600mm. Optional,stainless steel |
| Needle hole | Φ0.4mm |
| Included angle of two holes | IPX3:120°； IPX4:180° |
| Pendulum angle | IPX3:120°(±60°)； IPX4:350°(±175°) |
| Raining speed |
IPX3:4 s/time(2×120°)； IPX4:12 s/time(2×350°)； |
| Water flow | 1-10L/min adjustable |
| Testing time | 0.01S～99hours 59min,can be preset |

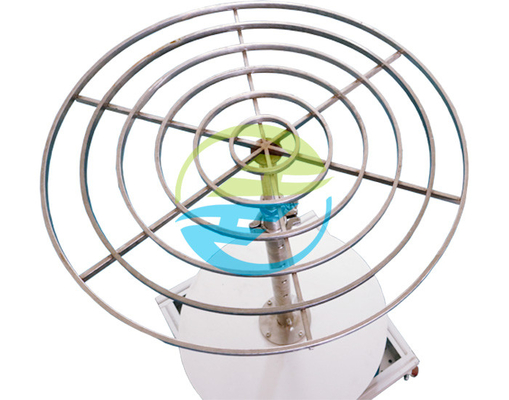

| Rotary plate | Diameter:Φ600mm；Rotate speed:1r/min,Can be paused at four aspects, Load bearing≤50㎏electrical equipment |
| Pressure gauge | 0~0.25MPa |
| Site requirements |
Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation |
| Area covered | It is set according to the selected oscillating tube |

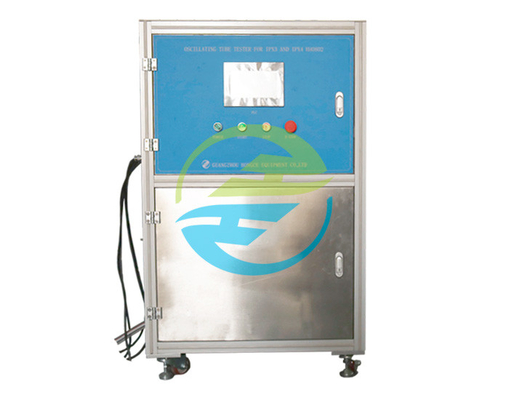

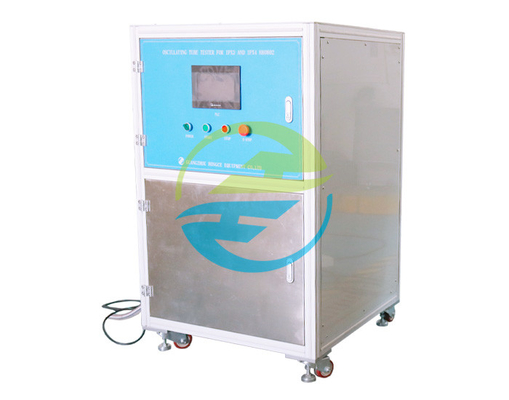

Product details:
Our advantage service:
We possess a dedicated development and design team that guarantees our customers access to technologically advanced and innovative products. If you, as a customer, have a new concept for any product, simply share it with us. Based on your idea, we can offer a customized and unique design for the product.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us:
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company has incorporated advanced equipment, coupled with cutting-edge technological production processes and a rigorous quality control system, to oversee every aspect of our production. By integrating a team of highly skilled management personnel with state-of-the-art equipment, along with modern management practices, computer-aided design, and control systems, our products have attained international standards of excellence.The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products have garnered excellent sales both domestically and internationally, and we have forged supply partnerships with numerous reputable companies.
