| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC-HJMN001 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 90 days |
| Payment Terms: | T/T |
| Supply Ability: | 1 Sets per 3 month |
| Model: | HC-HJMN001 | Resolution: | 0.1 Or 0.01℃ |
|---|---|---|---|
| Temperature Control System: | Fully Enclosed Or Semi-enclosed Compressor | Observation Window: | Multi-layer Hollow Electroplated Film Heated Explosion-proof Glass |
| Laboratory Size: | Can Be Customized According To User Needs, Common Sizes Are 1m³, 2m³, 3m³, Etc | Optional Accessories: | Emperature And Humidity Recorder, Number Of Doors, SMS Alarm, Controller Brand, Compressor Brand, Etc. |
| Highlight: | IP Testing Temperature Control Equipment,IEC 60068-2 IP Testing Equipment |
||
IEC 60068 - 2 Advanced Temperature Control Technology in IP Testing Equipment: High-Precision Temperature Regulation System with Enhanced Stability and Adaptability for Reliable Testing
Application: A high - performance testing equipment used to simulate extreme high and low temperature environments for conducting reliability tests on products in various fields like electronics, electrical appliances, communications, automobiles, and aerospace. It helps companies enhance product quality and competitiveness by providing accurate test data.
Test Standards: Complies with IEC 60068 - 2 - 1 (low temperature test methods), IEC 60068 - 2 - 2 (high temperature test methods), and ISO 16750 (environmental conditions and testing for electrical and electronic equipment in road vehicles).
Wide Temperature Range: Can control temperature from extremely low to extremely high, fulfilling diverse product testing requirements.
High Precision: Employs advanced temperature control technology for accurate internal temperature control and reliable test results.
Good Stability: Maintains a stable temperature during long - term testing.
Easy to Operate: Equipped with an advanced control system for simple parameter setting and adjustment.
Safe and Reliable: Has comprehensive safety protection, including over - temperature and leakage protection.
Energy - saving and Environmental - friendly: Utilizes efficient refrigeration and heating technology, reducing operating costs.
Comprises a refrigeration system (using a compressor for cooling), a heating system (transferring heat through electric or other methods), a control system (monitoring and controlling temperature via sensors), and a circulating air system (ensuring even temperature distribution).
Technical parameters:
| Operating temperature range | +80℃ (100℃, 120℃, 150℃) ~ -70℃ (A: 0℃, B: -20℃, C: -40℃, D: -60℃, E-70℃) |
| Temperature deviation | ≤±2℃ |
| Humidity deviation | +2/-3%RH |
| Heating time | ≤40min |
| Cooling time | 30min～180min (depending on different models) |
| Material | A3 steel plate + spray coating for the outside, SUS#304 stainless steel for the inside, PU foam and insulation cotton for the insulation layer |
| Power supply | AC380(1±10%)V, 50±0.5HZ, three-phase four-wire + protective ground wire |
| Optional accessories | Temperature and humidity recorder, number of doors, SMS alarm, controller brand, compressor brand, etc. |

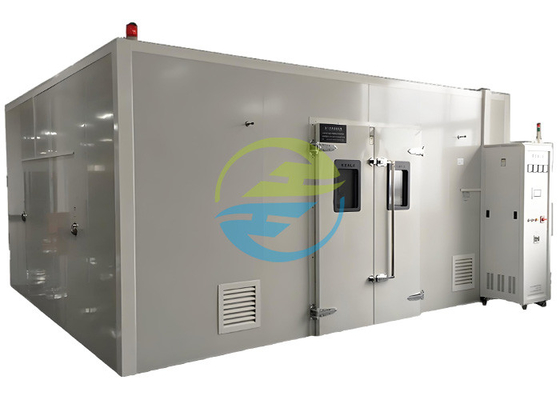

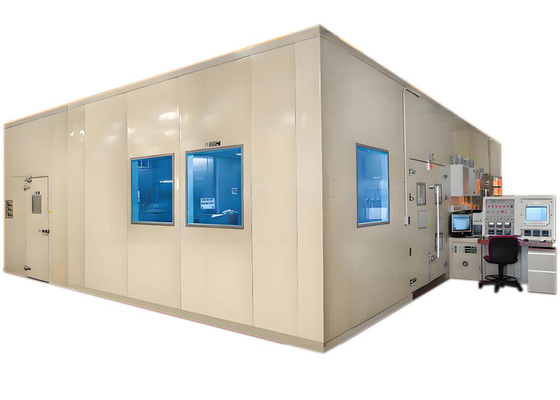

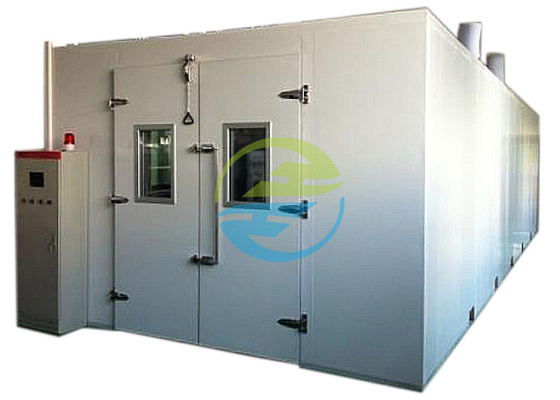

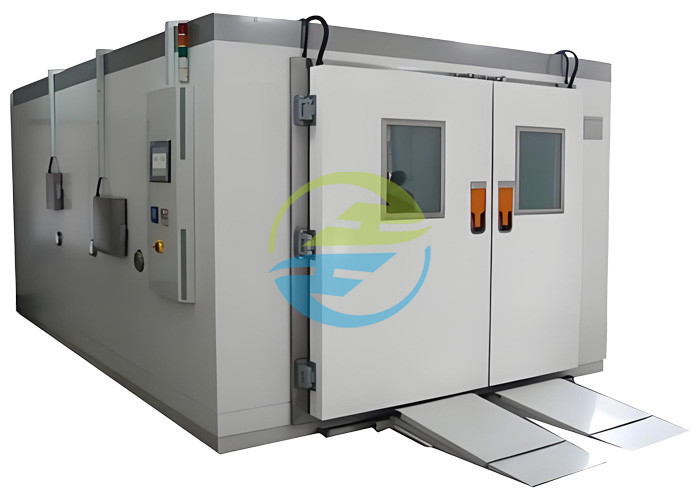

Detailed image:
Temperature Control Accuracy: Generally within ±0.5℃, adjustable.
Waterproof Level Tests: Can meet IPX5 and IPX6 requirements.
Studio Size: Customizable.
Heating and Cooling Rates: Heating rate 1℃/min - 5℃/min, cooling rate 0.7℃/min - 1.5℃/min, both adjustable.
Power Requirements: Usually a 380V/50Hz three - phase five - wire power supply.
